Sanch high torque/position control mode ac servo motor and drive 750w

FOB Reference Price:Get Latest Price
$1.00 - $314.00 / Pieces | 1 Piece/Pieces ac servo motor and drive 750w (Min. Order)
Report Suspicious Activity
Quick Details
Place of Origin:
Fujian, China
Brand Name:
Model Number:
ac servo motor drive:
excellent performance
standard software Rs485/232 protocol
Input Voltage:
200~230v 3PH
input frequency:
50hz 60hz
Current Capacity:
key part:
TI CPU,Mitsubishi IGBT,Delta fan
CE,ISO9001/14001,OHSAS 18001
TFT LCD cutting machine, CNC processing equipment,
Control Mode:
Position Mode/Speed Mode/Torque Mode
ac servo motor and drive 750w
Supply Ability
Supply Ability:
100000 Piece/Pieces per Year ac servo motor and drive 750w
Packaging & Delivery
Packaging Details
SANCH standard package (with PE Bag With Protect Foam,Carton Box/PCS With PET Straps)ac servo motor and drive 750w
Xiamen ac servo motor and drive 750w
Lead Time :
7days after payment ac servo motor and drive 750w

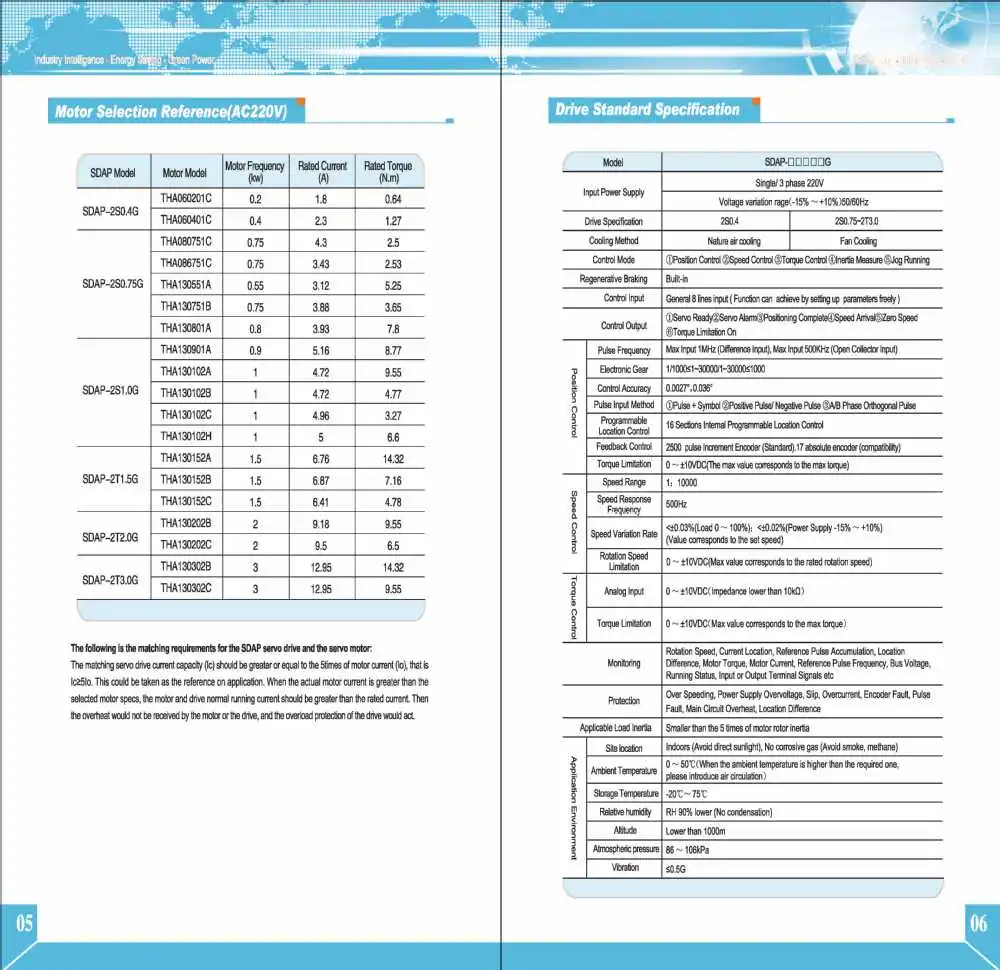

Product Description

ac servo motor and drive 750w


Input Power Supply220V   Single/ 3 phase 220V
Voltage variation range (-15%~+10%)50/60Hz
Drive Specification2T0102T020~2T050
Cooling MethodNature air coolingFan Cooling
Control Mode1.Position Control 2.Speed Control 3.Torque Control 4.Inertia Measure 5.Jog Running
Regenerative BrakingBuilt-in
Control InputGeneral 8 lines input ( Function can achieve by setting up parameters freely )
 Control Output1.Servo Ready2.Servo Alarm3.Positioning Completed4.Speed Arrival5.Zero Speed 6.Torque Limitation On
Position Control Pulse FrequencyMax Input 1MHz (Difference Input), Max Input 500KHz (Open Collector Input)
Electronic Gear1/1000≤1~30000/1~30000 ≤1000
Control Accuracy0.0027°,0.036°
Pulse Input Method
Pulse + Symbol /Positive Pulse/ Negative Pulse A/B Phase Orthogonal Pulse
Programmable Location Control16 Sections Internal Programmable Location Control
Feedback Control2500 pulse Increment Encoder (Standard).17 bit absolute encoder (compatibility)
Torque Limitation0~±10VDC (The max value corresponds to the max torque)
  Position ControlSpeed Range1:10000
Speed Response Frequency500Hz
Speed Variation Rate<±0.03%(0~100%);<±0.02%(15%~+10%)
<±0.03%(Load 0 ~ 100%);<±0.02%(Power Supply -15% ~ +10%) (Value corresponds to the set speed)
Rotation Speed Limitation0~±10VDC(Max value corresponds to the rated rotation speed)
Torque ControlAnalog Input0~±10VDC(Impedance lower than 10kΩ)
Torque Limitation0~±10VDC (Max value corresponds to the max torque)
MonitoringRotation Speed, Current Location, Reference Pulse Accumulation, Location Difference, Motor Torque, Motor Current, Reference Pulse Frequency, Bus Voltage,Running Status, Input or Output Terminal Signals etc
ProtectionOver Speeding, Power Supply Overvoltage, Slip, Overcurrent, Encoder Fault, Pulse Fault, Main Circuit Overheat, Location Difference
Applicable Load InertiaSmaller than the 5 times of motor rotor inertia
Application EnvironmentSite locationIndoors (Avoid direct sunlight), No corrosive gas (Avoid smoke, methane)
Ambient Temperature0~50°C (When the ambient temperature is higher than the required one,please introduce air circulation)
Storage Temperature-20°C~75°C
Relative humidity90%RH RH 90% lower (No condensation)
Altitude1000m  Lower than 1000m
Atmospheric pressure86~106kPa





50 pins I/O terminal board for CN1 interface(optional)





Packaging & Shipping

single inverter would be covered a plastic bag ,and then  put it between two EPE buffers , last put it in a small carton ,this is way to pack one unit .

Shipping:  by sea, or express like UPS, DHL, FedEx...if we deliver a lots of inverters ,we could use a outer larger carton to pack it ,and cover PE film to protect goods. Xiamen export port is the nearest to our factory.

Our Services


1.We will offer the development services of specific field specialized products based on the strong technical power and the advanced product development platform.

2.All of the Sanch products are offered with national wide warranty and 18 months of free guarantee.

3.All the MPQ of product is ONE,you can release your order with the flexibility quatity

4.Having international express partner(DHL/Fedex),who can help you to deal with the delivery process if needed.

5.We can offer you with factory direct sale

6.Calling or door to door service and  English manual user

Company Information









1.Are you a manufacturer

Yes,we have 10 machine lines and more than about 1000 workers and have 12  years experiences in ac servo drive and ac servo motor .

2.What is your supply capacity?

The annual output of the factory exceeds 1000,000 sets.

 3.waht is product?

Our company specialized in general inverters, high performance Vector inverters/inverter for elevator/lift, dancer & winding control inverter,high speed frequency inverter, Fan & pump inverter, asynchronous  Motor servo drive, servo, synchronous servo, AC servo motor positioning system  Industrial touch control panel, industrial touch panel all in one machine, Electrical power regulator (power controller), counter/revolution meter /different kinds of intelligent  operation instruments etc.
4.What is the payment of your product?
 5.Is there any discount ?
The discount will depend on the quanlity you purchase.
 6.Is there any manual operator?
 Yes,our company provide complete manual operator for the user
 7.How do you control the quality?

Sunshine is a factory of electric equipment for 12years,with the strength of high quality and competitive price.Two optional quality material,one is local made 100%pp,the other is imported.Material and Accessories Inspection upon arrival,in line control on each step,general inspection and fixing before packing,third party inspection acceptable.

 8. What kind of certificates you have?

  We have  got the CE & ISO in 2004.
 9.Can you send us samples?
  All the inverter has been test pass in china before export ,so you can use without test
 10.Do you have MOQ?

No MOQ,all the MPQ of product is ONE,you can release your order with the flexibility quatity.

 11.How about your packing?
 All the product are packaged with Single by buffers and single small carton, but lots of goods by bigger carton and cover PE film. about the delivery?

We have  international express partner(DHL/Fedex),who can help you to deal with the delivery process if needed.

 13.What is your market?

We export to the USA,South America,Europe,the Middle East,Asia,Africa,etcs.

 14.Do you have agents?

In Chinese, we have established dozens of service centers and more than 100 distribution agencies.

In order to develop the international market,we sincerely invite global customers to join SANCH.
