V/F general purpose AC frequency inverter for central aircompressor / stone cutting model or flocker model

FOB Reference Price:Get Latest Price
$160.00 - $850.00 / Pieces | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Quick Details
Place of Origin:
Fujian, China (Mainland)
Brand Name:
Model Number:

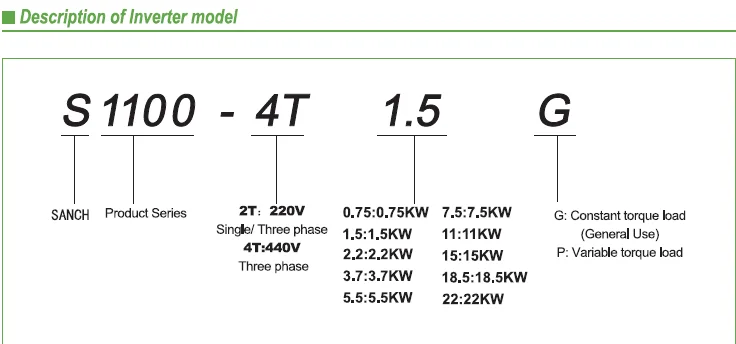

S1100 series inverter
V/F general purpose frequency inverter
Input Voltage:
220V single phase/ 220V 3phase/ 440V 3phase
Output Power:
control mode:
voltage vector SPWM control, V/F control, no-speed vector control
ISO9001: 2008 / OHSAS18001: 2007 / ISO14001:2004
Application area:
central air conditioner model/stone cutting model or flocker model
fault protection function:
Inverter unit protection, OC, Over voltage Overheat protection etc.
Supply Ability
Supply Ability:
100000 Piece/Pieces per Year
Packaging & Delivery
Packaging Details
The interver will be covered with a transparent bag , and also put EPE
buffers both side of the paper carton or wooden carton.
depending on circumstances
Lead Time :
Within 15 days
Product Description

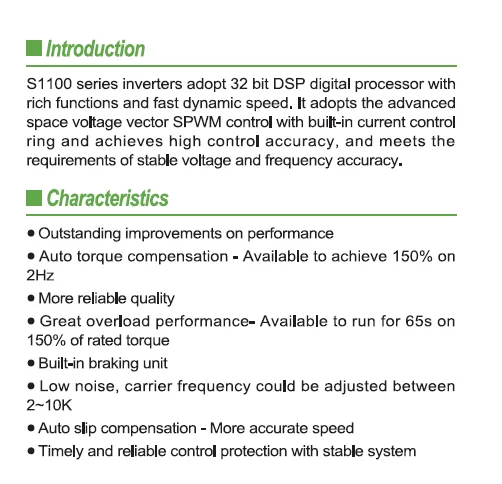

                                                                S1100 Series Inverter

Product  Parameters


Input Rated Voltage:220V single  phase/ 220V 3phase/ 440V 3phase
Output Frequency:0.01Hz~400Hz
Output Power:                     0.75Kw~22kw
Weight(KG):                      1.6KG~11.2KG

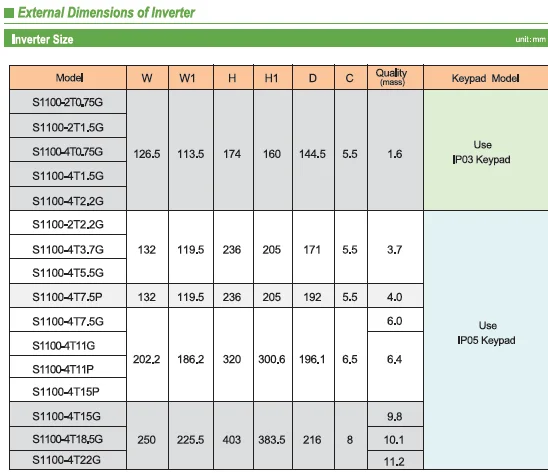

Size:                   According to the power
Working Environment:1,Operational environment temperature-10℃+50℃(Dust cover must be opened on +40~+50℃)
2,Storing temperature         -20℃ ~ +60℃
3,Operational environment humidityBelow 90%RH without moister
4,Mounting heightLower than 1,000m without corrosive gas, fluid and dust.
5,VibrationUnder 20Hz 9.80665m/s2(1g), 20~50Hz 5.88m/s2(06g).
6,Protect ratingIP20( Installation environment determined by the end-users).
Our Certificates
Our Produce Line
Packaging & Shipping

Packaging: The interver will be covered with a transparent bag , and also put EPE
buffers both side of the paper carton or wooden carton.


Shipping: The customization of shipping way, just depend on your actual request.



Our Services

1, We offer the ODM and OEM services.


2,We also provide customers with the first-class after-sales service.


3,Our products have passed a series of tests, such as loadind test, finctional test, vibration strength, products aging test etc.



Company Information



Taiwan Sanch is one of the earliest established manufacturers of inverter in China. Sanch group has been the professional industrial automation product and solution provider that integrates RD,manufacturing, sales and service who has Quanzhou Sangchuan Electric Equipment Company as its RD and manufacturing base, Shanghai Sanch Technology Company as its geographic center.

   We have a professional R&D team, such as 50 hardware engineers and 30 software engineers, 30 FAEs. We also have a professional management team, some managers had worked in some very famous company, likes Kenwood, Foxcon, Acer, Delta, Liteon etc.

Our company produces many kinds of products for selections; they are inverter, drivers, all-in-one machine controllers, knitting controllers, control panel and so on.




Q1,Does Sangchuan Electric Equipment Company is an agent?

  A, Sangchuan Electric Equipment Company is the sole agent of Sanch group in China, and selling directly to the oversea marketing.


Q2,How about  your product-grade?

   A,Our products are in medium and high-grade position, Europe, the United States and the Taiwan well-known brands are become our main competitors, but our products price is very competitive in the same level products.
