Updated CE quality servo controller 220v single phase to three phase phase 0.75kw 2000rpm servo motor controller

FOB Reference Price:Get Latest Price
US $100-3,000 / Pieces | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Fujian, China (Mainland)
Brand Name:
Sanch ac servo motor
Model Number:
SDA2 ac servo motor
Output Power:
0.4-7.5kw ac servo motor controller
Output Type:
Multiple
Size:
Depend
Weight:
depen
Input Voltage:
220v single/3 phase 380v 3 phase
Output Voltage:
AC220V
Type:
ac servo motor controller
Output Frequency:
0~600Hz
Output Current:
Load
Product name:
SDA2
power:
0.4-7.5kw
type:
high accuracy ac servo motor drive
encoder:
with 20 bits
safe torque off function:
optional
enclosure:
IP65/67
characteristic:
low noise/low generation
cetification:
SGS ISO9001 ISO14001 OHSAS18001 CE
environment friendly:
save energy automatically
key parts:
TAMAGAWA,TI, Infineon
Supply Ability
Supply Ability:
100000 Piece/Pieces per Year
Packaging & Delivery
Packaging Details
The inverter in a plastic bag would be protected by two EPE buffers in a carton independently. And then each packed item would be stacked up on pallets if the quantity is large.
Port
optional
Lead Time :
within 15 days

 -(-) (1)

 Ac Servo Motor Product streng

  • Equip with 20 bits INC encoder, 1.04 million for one round, which can realize the high precision positioning and make a more smooth operation and more stable during low speed operation.
  • with response frequency 1.2khz, which can improve the capability of dynamic tracking and largely shorten the turning time to make the quick positioning.
  • with 4Mpps input/output pulse and optional 16bit analog command resolution input to make the more accurate control of the host controller.
  • with real- time automatic gain adjustment, which can adjust relative parameter automatically set to suppress the vibration of machinery
  • with automatic requency setting on panel.intelligent wobble frequency.
  • auto energy saving, auto torque increasing, auto slip detection compasions. etc.





Environment friendly

  •  Follow RoHS
  •  More environmentally friendly





Oulook









 Ac Servo Motor Outstanding



Servo kit chracteristicsFast response to orderresponse rate reaches 1.2khz. The RPM from -3000 to 3000 need 7ms only.
high accuracy controlling The frequency of command pulse is up to 4M. The high accuracy postion  and more stable at low speed comes true due to Equipt 20 bits encoder, 104 million pulse in one cycle
good capacity to overloading Instant  torque reaches to 3 times of overloading.
Servo Driver AdvantageAutomatical notching Filter  Setting notching filter detect operation automatically when machine is detected resonance
Automatical vibration reduction upper limite to restrain vibration, for example restraining hand-arm vibration
Self-turning function improve the self-adptation function, response performance and so on
Built-in funtionsfriction compensation function, model torque function,input&output signal distribution function, ect
Application CNC machines, loom, small knitting machines, air jet loom, food process machine, laser marking machine, robot,ect.

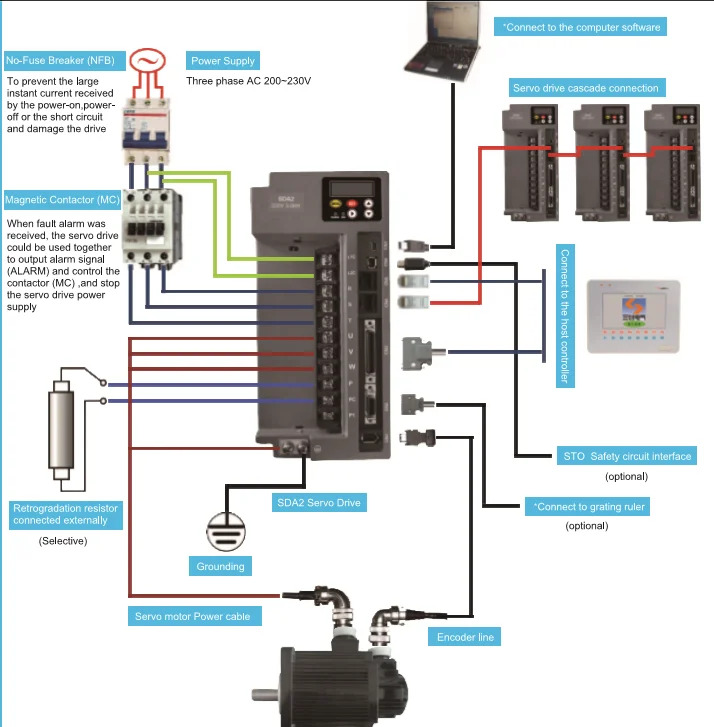

System Structure Diagram



-(-) (2).jpg



-(-) (3)

-(-) (4).jpg-(-) (5).jpg-(-) (6).jpg

-(-) (7).jpg-(-) (8).jpg-(-) (9).jpg



 -(-) (10).jpg-(-) (11).jpg
